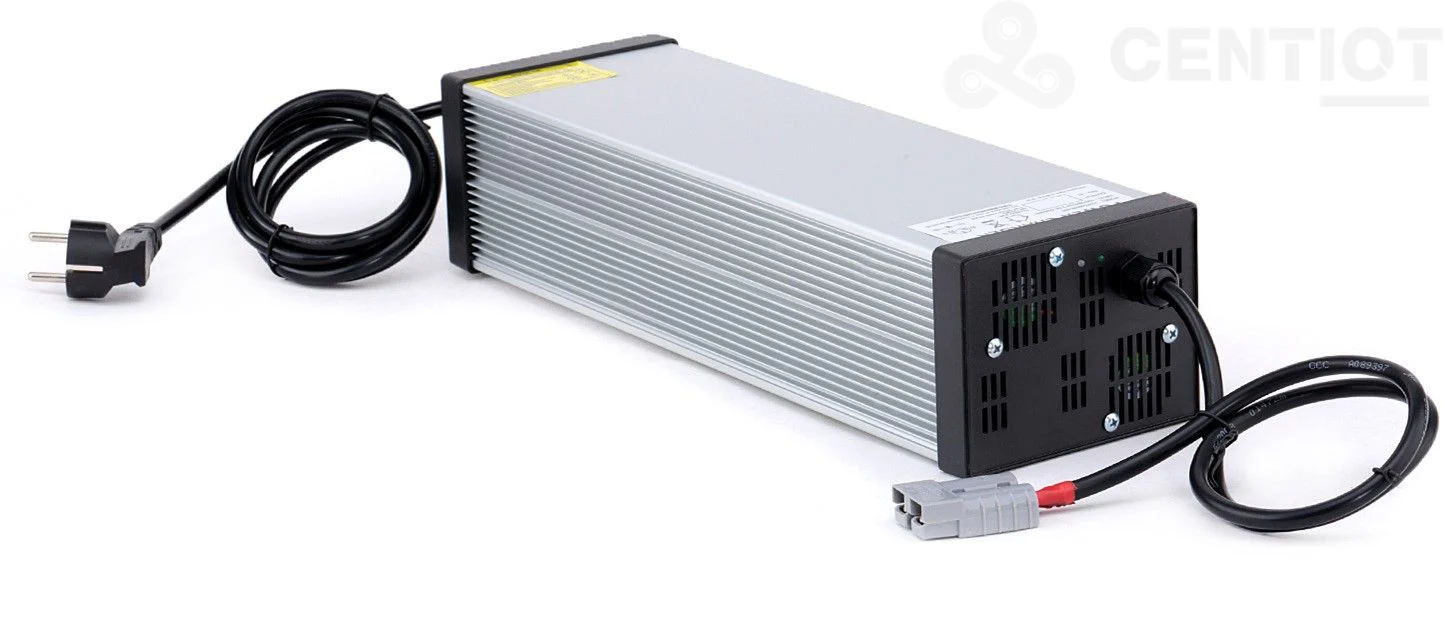

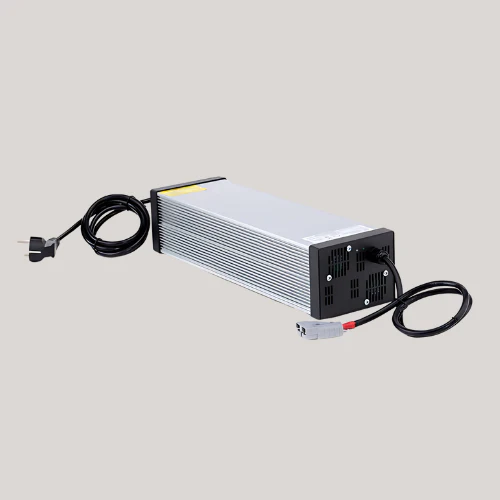

84V 10A Lithium Battery Charger - for 72V 20S Li-ion/LiPo batteries; UK, EU plug

It has: constant voltage , constant current, over voltage, over current protection function ; indicator light conversion green/red; automatic recovery.

Charging voltage: 84V

green light - when fully charged or not connected.

red light - charging

Charging current: 10 Amps

Connectors: default is XT90 ; other options are available

Other specifications:

Charger power rating: 840 Watts

Charging profile: CC-CV (constant current – constant voltage)

Input: 110-240V AC 50/60 Hz

Cooling fan: Yes, installed

AC wall connector: 3-prong UK plug or 2 Pin EU plug

Dimensions: 41cm x 12cm x 10cm / 16in x 4.6in x 3.9in

Weight: 1.8Kg

Application types:

- for nominal Voltage 72V, Rated Capicaty:10Ah- 35Ah battery pack,

- 72V electric bike , electric scooter, golf cart, UPS power supply (20 series Li-ion Battery pack),

- Rechargeable battery Li-ion Electric Tools, Garden Power Tools, Cleaning machine, electric vechicle (EV), etc.

Output current, 10A constant current charging, the indicator light is red

Conversion current, 300mA, after full conversion, the indicator light is green
Efficiency, >80% (maximum output voltage, full load)
Input voltage range, 220~ 240VAC; 47 ~ 63Hz;
Input current, 0.03A/230V
Overload protection, 105%~150%, Type: FOLDBACK current limit output Reset: automatic recovery
Temperature coefficient, ±0.03% °C (0 ~ 50 °C) OUTPUT
Working temperature, humidity, -10 ° C ~ +50 ° C, 20% ~ 90% RH
Storage temperature, temperature, -10 ° C ~ +60 ° C, 20% ~ 90% RH

Electric Scooter Batteries

84V 10A - 20S (72V) Lithium Battery Fast Charger for Electric Bike Scooter ebike escooter EV
